What is TFTP firmware management?
TFTP (Trivial File Transfer Protocol) enables network administrators to remotely upgrade or downgrade Grandstream Access Point firmware without physical access to devices, ideal for mass deployments and maintenance.
Quick comparisons
Method
Pros
Cons
Notes
TFTP Upgrade
Bulk firmware updates, automated deployment, version control, rollback capability
Requires TFTP server setup, network accessibility needed
Best for enterprise deployments with many APs
Web GUI Upgrade
Simple point-and-click interface, visual confirmation, immediate feedback
Manual process per device, time-consuming for large deployments
Good for single AP or small networks
GWN Cloud
Centralized management, scheduled updates, remote monitoring
Requires cloud connectivity, subscription-based features
Ideal for distributed networks and MSPs
SSH/CLI
Scriptable, automation-friendly, detailed logging
Command-line expertise required, potential for errors
Advanced users and custom deployment scripts
Prerequisites and requirements
TFTP Server
Linux tftpd, Windows TFTP server, or network appliance with TFTP capability accessible from AP management network.
Firmware Files
Official Grandstream firmware (.bin files) downloaded from vendor support portal, verified checksums recommended.
Network Access
Layer 2/3 connectivity between TFTP server and Access Points, proper VLAN and firewall rules configured.
AP Preparation
Current firmware version noted, configuration backup created, maintenance window scheduled for minimal disruption.
TFTP server software downloads
Choose the appropriate TFTP server software for your operating system and network environment.
Platform
Software
Download Link
Notes
Linux
tftpd-hpa
apt install tftpd-hpa
Standard Ubuntu/Debian package
macOS
Built-in tftpd
sudo launchctl load -w /System/Library/LaunchDaemons/tftp.plist
Native macOS TFTP daemon
Detailed TFTP server configuration
Windows TFTP32 Setup
1. Download and Install: Download TFTP32 from the official site, extract to C:\TFTP32, run as administrator.
2. Configure Directory: Set "Current Directory" to folder containing firmware files (e.g., C:\TFTP32\firmware).
3. Network Settings: Select correct network interface in "Server interfaces" dropdown. Note the IP address shown.
4. Security Settings: Under "Global" tab, set "Base Directory" and enable "Allow OverWrite" if needed for logs.
5. Start Server: Click "Settings" > "TFTP Server" tab > check "TFTP Server" to start service.
Linux tftpd-hpa Setup
1. Install Package: sudo apt update && sudo apt install tftpd-hpa
2. Create Directory: sudo mkdir -p /srv/tftp/firmware
3. Set Permissions: sudo chown -R tftp:tftp /srv/tftp && sudo chmod -R 755 /srv/tftp
4. Configure Service: Edit /etc/default/tftpd-hpa set TFTP_DIRECTORY="/srv/tftp"
5. Start Service: sudo systemctl enable tftpd-hpa && sudo systemctl start tftpd-hpa
Step-by-step Grandstream AP upgrade process
Phase 1: Firmware Preparation
1. Download Firmware: Visit grandstream.com/support/firmware, select your AP model (e.g., GWN7630), download latest .bin file.
2. Verify Checksum: Compare downloaded file MD5/SHA hash with published checksum on Grandstream site.
3. Place in TFTP Directory: Copy firmware file to TFTP server root directory. Rename to simple name like "gwn7630-latest.bin".
4. Test TFTP Access: From command line: tftp [server-ip] -c get gwn7630-latest.bin to verify server responds.
Phase 2: Access Point Web Interface Navigation
1. Connect to AP: Open web browser, navigate to AP IP address (default: 192.168.1.1 or check DHCP table).
2. Login: Enter credentials (default: admin/admin or admin/[blank]). Change default password if prompted.
3. Navigate to Maintenance: Click "Maintenance" in left sidebar menu → Select "Upgrade" from submenu.
4. Current Version Check: Note current firmware version displayed at top of upgrade page for rollback reference.
Phase 3: TFTP Upgrade Configuration
1. Select Upgrade Method: In "Firmware Upgrade" section, select "TFTP" radio button (not "HTTP Upload").
2. TFTP Server Settings:
- Server IP: Enter your TFTP server IP address (e.g., 192.168.1.100)
- File Path: Enter firmware filename exactly as stored (e.g., "gwn7630-latest.bin")
- Port: Leave default 69 unless using custom port
3. Advanced Options: Check "Config File Download" if you want to preserve settings, otherwise leave unchecked for clean install.
4. Backup Current Config: Click "Download" button in "Configuration File" section to save current settings before upgrading.
Phase 4: Upgrade Execution
1. Initiate Upload: Click "Upgrade" button. AP will display "Upgrading..." with progress percentage.
2. Monitor Progress: Watch for "Downloading firmware..." → "Verifying firmware..." → "Installing firmware..." status messages.
3. Automatic Reboot: AP will reboot automatically after successful installation. This takes 2-3 minutes.
4. Reconnect: Browser will lose connection during reboot. Wait 3 minutes, then refresh browser or reconnect.
Phase 5: Post-Upgrade Verification
1. Version Check: Log back into AP web interface, verify new firmware version in "Status" → "System Info".
2. Network Connectivity: Test wired and wireless connectivity, ensure all interfaces are operational.
3. Configuration Review: Check wireless settings, security policies, and management interfaces are configured correctly.
4. Performance Testing: Run wireless speed tests and verify expected performance levels.
Supported Grandstream Access Point Models
TFTP firmware management is available across the complete GWN series lineup with varying capabilities and requirements.
Model Series
Indoor Models
Outdoor Models
Special Features
GWN76xx

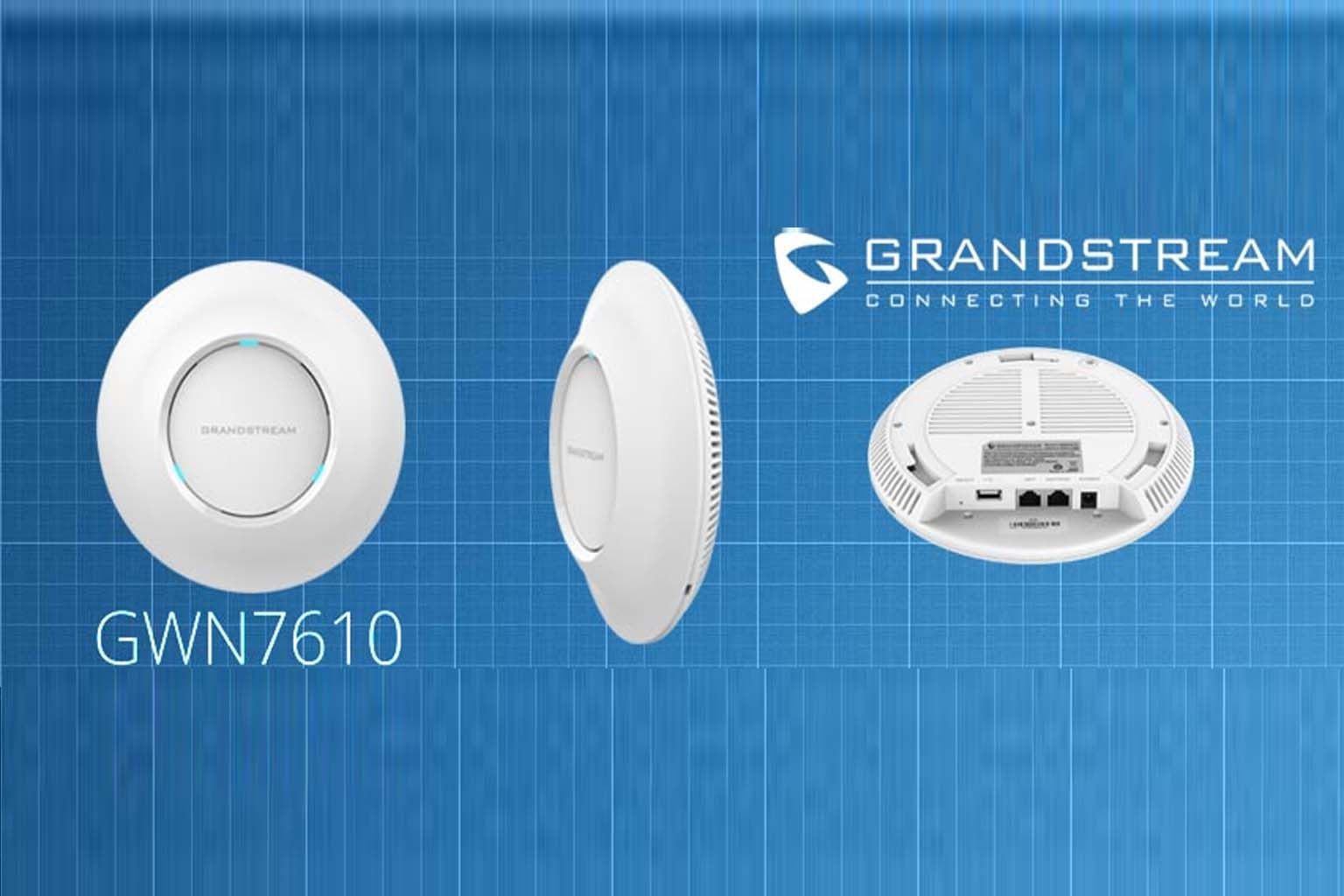

GWN7610, GWN7615, GWN7630, GWN7660
GWN7600, GWN7600LR
Wi-Fi 6, mesh support, PoE+
GWN75xx
GWN7510, GWN7600, GWN7630
GWN7600
Wi-Fi 5 (802.11ac), cost-effective
GWN74xx
GWN7400, GWN7410
-
Entry-level, basic TFTP support
Legacy Models
GWN7000, GWN7001
-
Limited TFTP features, end-of-life
Note: Always verify TFTP compatibility in your specific firmware version before attempting remote upgrades. Newer models support advanced TFTP features like automatic retry and progress reporting.
Troubleshooting common TFTP upgrade issues
Connection Problems
TFTP Timeout Error: Check network connectivity, firewall rules, and TFTP server status. Verify UDP port 69 is open.
File Not Found: Confirm firmware filename matches exactly (case-sensitive). Check file permissions and TFTP directory path.
Access Denied: Ensure TFTP server has read permissions on firmware file. Check anti-virus software blocking.
Upgrade Failures
Verification Failed: Firmware file may be corrupted. Re-download and verify checksum before retry.
Power Loss During Upgrade: Enter TFTP recovery mode by holding reset button during power-on for 10+ seconds.
AP Not Responding: Wait 5 minutes, then try factory reset. Use 30-30-30 reset method if needed.
Batch upgrade strategies for multiple APs
Sequential Approach: Upgrade APs one at a time during maintenance window. Monitor each completion before starting next device.
Staged Deployment: Group APs by building/floor, upgrade in phases to maintain wireless coverage during process.
Automated Scripts: Use SSH/SNMP scripts to trigger TFTP upgrades remotely. Schedule during low-usage hours with monitoring.
GWN Cloud Integration: For cloud-managed deployments, use GWN.Cloud portal to schedule and monitor bulk firmware updates across sites.
FAQ
Can I downgrade firmware using TFTP? Yes, TFTP supports both upgrades and downgrades. However, verify compatibility as some newer configurations may not be supported in older firmware versions.
What happens if TFTP upgrade fails? Most Grandstream APs have recovery mode. Power cycle while holding reset button to enter TFTP recovery mode and retry the firmware installation.
Do I need to reconfigure APs after TFTP upgrade? Generally no - configurations are preserved. However, always backup settings before upgrading and verify critical settings afterward.
Can multiple APs upgrade simultaneously? Yes, but monitor network bandwidth and TFTP server capacity. Consider staggered deployments for large-scale upgrades to prevent network congestion.
How do I verify firmware integrity? Use checksums provided by Grandstream to verify firmware file integrity before deployment. Most APs also perform internal verification during installation.
What's the default TFTP recovery IP address? Most Grandstream APs use 192.168.1.1 in recovery mode. Set your TFTP server to 192.168.1.100 and place recovery firmware as "recovery.bin".
How long does a TFTP upgrade typically take? Complete process takes 5-10 minutes: 2-3 minutes download, 1-2 minutes verification/installation, 2-3 minutes reboot and startup.
Can I use HTTPS instead of TFTP for security? Yes, newer GWN models support HTTPS firmware upload. Navigate to Maintenance > Upgrade > HTTP Upload for secure file transfer.
